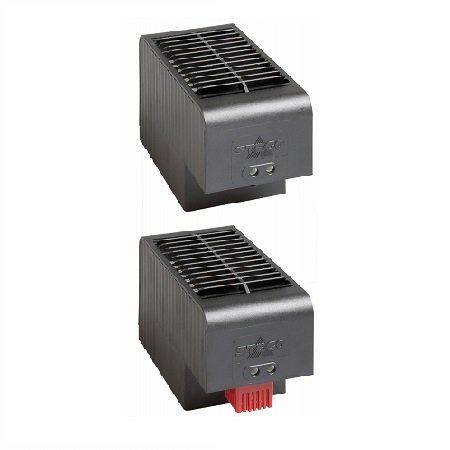

Compact Ptc Fan Heater CS 032/CSF 032

The compact CS 032 high-performance fan heater prevents the formation of condensation and provides an evenly distributed interior air temperature in enclosures. The plastic housing provides protection against contact with current-carrying components via double insulation (protection class II). The fan heater is also available with an optional fixed-point thermostat as the CSF 032. These series were designed to accommodate DIN rail or screw mounting.

Talk to Our Experts Download Datasheet

  • Compact design
  • High heating performance
  • Double insulated plastic housing
  • DIN or screw mount
  • Optional integrated fixed thermostat

  • Compact design
  • High heating performance
  • Double insulated plastic housing
  • DIN or screw mount
  • Optional integrated fixed thermostat

  • Heating element : PTC resistor – temperature limiting
  • Overheat protection : Built-in temperature limiter
  • Axial fans, ball bearing : Service life 50,000 h at 77 °F (25 °C)
  • Housing : Plastic, UL 94V-0, black
  • Connection : 2-pole terminal AWG 16 max. (1.5 mm²), torque 0.8 Nm max.
  • Operating/Storage temperature : -40 to +140 °F (-40 to +60 °C) / -40 to +158 °F (-40 to +70 °C)
  • Protection type/Protection class : II (double insulated) / IP20
  • Dimensions : 5.9 x 3.5 x 2.6" (150.5 x 88 x 66 mm)
