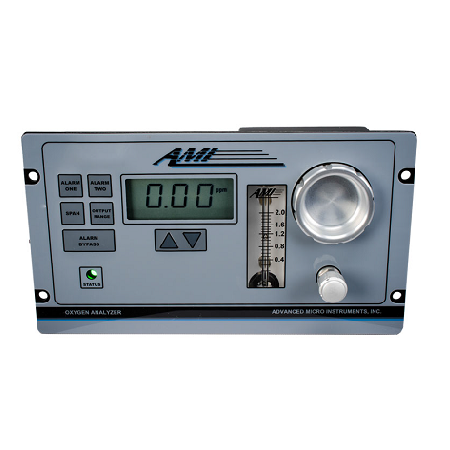

MODEL 2001LC

The AMI model 2001LC is the ideal solution for measuring trace oxygen in a wide range of applications in a general-purpose environment. In a small size, and at a very low cost, it provides a complete electronic package and sample system using AMI’s patented cell block technology.

  • Complete sample system built into AMI’s patented cell block.
  • Very rapid response time from air to low ppm levels.
  • Easily replaceable sensor, no tools required.
  • T-2 sensor is resistant to the 10ppm H2S standard.
  • Simple, versatile installation.
  • Operates off 10-28VDC with very low power consumption
Talk to Our Experts Download Datasheet

  • Standard AMI T-2 trace electrochemical sensor
  • Panel mount
  • Compact size
  • 10 user-selectable output ranges
  • 3 ½ digit LCD

  • Low original cost and virtually maintenance-free over its entire life.
  • Area Classification: Designed to meet General Purpose requirements.
  • 2-year warranty for analyzer, parts, and labor.
  • 6-month sensor warranty.

  • Sensitivity : 0.5% of full scale Operating
  • temperature : 41°F to 113°F
  • Humidity : < 95%, non-condensing
  • Maximum inlet pressure : 100psig.
  • Power requirements : 24VDC <10W.
