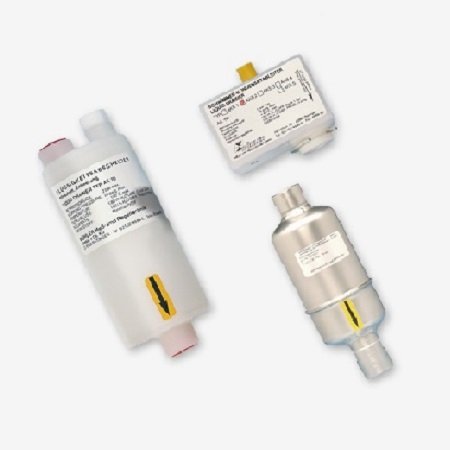

Automatic Condensate Drains AK 5, AK 20, 11 LD V 38

In extractive gas analysis it is important to protect the measuring cells from any type of contaminants. In addition to removing particle contamination, it’s also extremely important to separate moisture and condensation. If the sample gas flowing through the conditioning system is pressurised, drains with automatic drain valves can be used to discharge condensate settling in the sample gas cooler. These do not require any additional energy supply and are available in various material combinations.

Talk to Our Experts Download Datasheet

  • High operating reliability.
  • Long life.
  • Various base materials.

  • High operating reliability.
  • Long life.
  • Various base materials.

  • Type 11 LD V 38 AK 20 AK 5
  • Ambient temperature: +5 to +60 °C +5 to +60 °C +5 to +60 °C
  • Weight: 0.8 kg  0.3 kg with wall bracket (gas outlet sealed)  0.25 kg
  • Material: Stainless steel 1.4306, 1.4401, 1.4301  PVDF  PVDF
  • max. medium temperature: 200 °C  100 °C  100 °C
