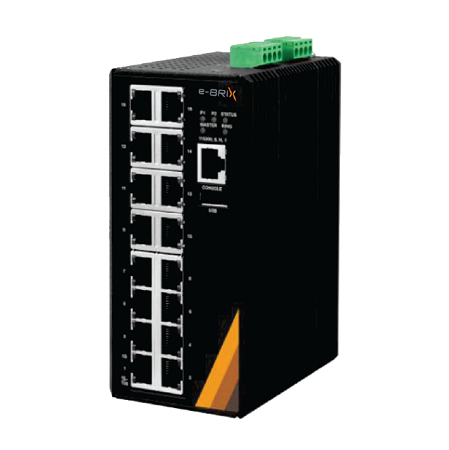

16-Port Industrial Gigabit Managed Ethernet Switch

16-Port Industrial Gigabit Managed Ethernet Switch 16*10/100/1000Base-T(X)

16-port 10/100/1000Base-T(X) Ethernet Multiusers account for security Configuration: http. https, CLI Command, Telnet, SNMP, SSH Network redundancy support: G.8032 ERPS v2/ STP/ RSTP/ MSTP3 Redundant power inputs design Operating temperature range – STD: -10°C ~ 65°C

Supports Static routes for routing function Supports RADIUS, TACACS+ authentication protocol Supports QoS, LACP bandwidth control Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security

RJ45 Ports: 16×10/100/1000 Base-T(X) Auto-Negotiation, Full/Half Duplex, Auto-MDI/MDI-X
Rs232 Serial Console: 1xRS232 in RJ45 connector with console cable, baud rate 115,200bps,8,N,1
Configuration Backup: 1xUSB 2.0 host (type-A) for configuration backup/restore
DI 1xDigital Input (DI): Stat e 0: -30~8VDC / State 1: 10~30VDC, Max. input current: 8mA
Input Voltage: Dual 12-48VDC redundant power inputs
Overload Current Protection: Yes
Reverse Polarity Protection: Yes
Power Consumption: Max. 13.8W full loading
Housing: Metal, IP30 protection
Dimensions: 67 x 142 x 99 mm (W x H x D)
Weight: Unit Weight: 1.2 kg, Shipping Weight: 1.4 kg
Mounting: DIN-Rail Mounting, Wall Mounting
Operating Temperature: STD: -10°C ~ 65°C (14°F ~ 149°F)
Storage Temperature: -40°C ~ 85°C (-40°F ~ 185 °F)
Operating Humidity: 5 to 95%, (non-condensing)
EMI: FCC Part 15 Subpart B Class A, CE EN 55022 Class A
EMC / EMS: IEC61000-4-2 (ESD), IEC610 00-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC610 00-4-8 (Magnetic Field)
Free Fall: IEC600 68-2-32
Shock: EN 60068-2-27
Vibration: EN 60068-2-6
Green: RoHS Compliant
