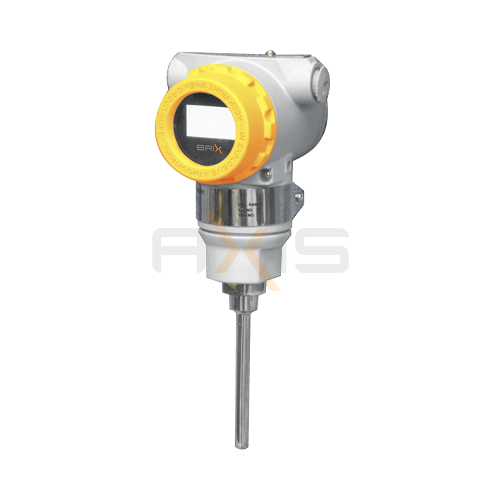

Smart Temperature Transmitter - TT04

Brix Series TT04 are temperature transmitters used for various industrial applications. It can accept input from RTD, all types of thermocouples & temperature signal is transmitted in the form of electrical 4 – 20 mA signal. The on-line temperature indication is provided through LCD. Span / Zero adjustments are easily accessible .

Talk to Our Experts Download Datasheet

  • 4-20 mA HART Compatible
  • Single & Dual Sensor Inputs
  • Differential, Average & Redundant temperature measurement
  • MOC Electronics Enclosure : Die Cast Aluminum / S S316
  • Enhanced display with Local Operator Interface
  • Sensor Redundancy / Peak Value Measurement / ΔT Measurement / Average
  • ATEX Certified

  • Output : 4-20 mA, 4-20 mA with HART
  • Isolation : 1 kV between Input, Output & Power Supply
  • Power Supply : 24V DC Two Wire Loop Powered
  • Power Consumption : < 50 mW
  • Response Time : < 300 mSec
  • Mounting : DIN Rail & Pipe Mount
  • Certification : CE & ATEX

See Related Products

Smart Differential Pressure Transmitter - DPT100S

Smart Differential Pressure Transmitter - DPT100S

Electromagnetic Flow Meter - MAG200

Electromagnetic Flow Meter - MAG200

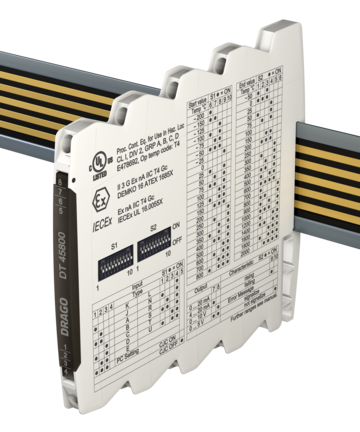

Head / Rail Mount Temperature Transmitter – TT-01
