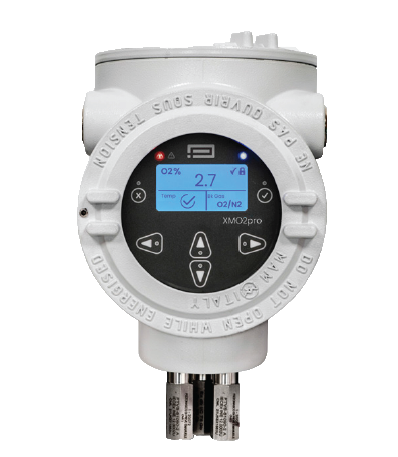

Oxygen Analyzer - XMO2 Pro

Thanks to the perfectly matched interaction between the paramagnetic oxygen property and temperature, the Safety Integrity Level (SIL) certified XMO2pro is contamination resistant, requires minimal maintenance and needs no consumables. This makes it the ultimate choice for highly accurate oxygen measurements for widespread use in harsh environment industrial and oil & gas applications.

Talk to Our Experts Download Datasheet

Measurement ranges from 0.01 percent to 100 percent O2 in gases
Explosion-proof and flameproof enclosure with weatherproof protection allows sensor to be remotely mounted at the measurement point
Push-button, single or dual gas calibration
Compact, rugged sensor design with no moving parts provides long term reliability and trouble-free operation
Dual-bridge measurement circuit compensates for variations in background gas composition
Unique dual-chamber, temperature-controlled cell design provides resistance to contamination and flow fluctuation
Computer-enhanced accuracy of 1 percent of span and linearity of better than 0.5 percent of span

Measurement resolution : 0.01 mA
Power : 24 VDC ±4 VDC, 1.2 A maximum
Digital output : RS232, three-wire
Ambient temperature range : –4 to 104°F (–20 to 40°C), standard cell operating temperature of 113°F (45°C) 23 to 131°F (–5 to 55°C), optional cell operating temperature of 140°F (60°C)
