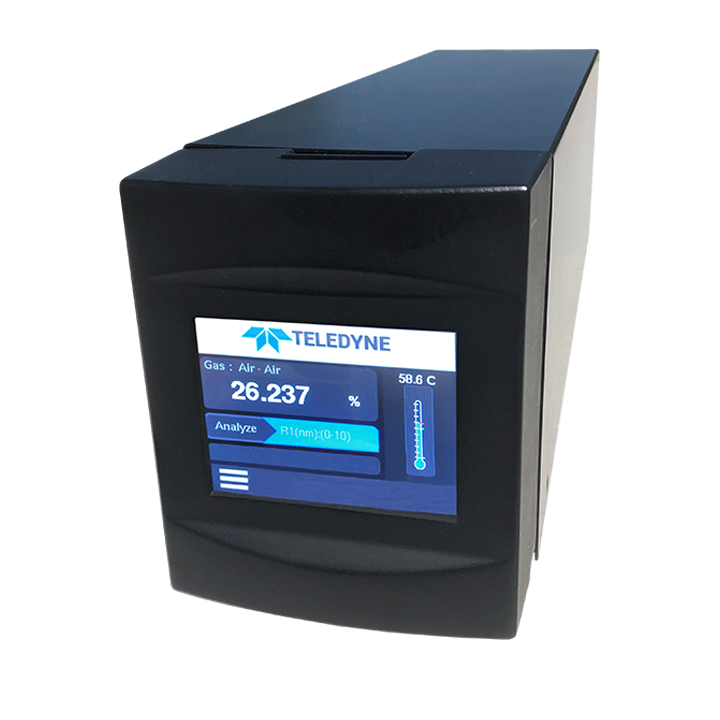

3000RS Series Oxygen Analyzers

The Model 3000RS Series is the next generation of online percent and trace oxygen analyzers from Teledyne Analytical Instruments. These analyzers are designed with the improved precision, sensitivity and accuracy of their predecessor, modern electronics and updated graphic user interface, all packaged into a compact and elegant chassis.

Talk to Our Experts Download Datasheet

Mount Style: Bench Top or Flush Panel (specify at time of order)
Range: Model specific, see below
Signal output: 0-1 VDC and 4-20 mADC (isolated)
0-1 VDC and 4-20 mA (isolated) range identification
Programmable auto-ranging
Range ID contacts (qty 4) Form A normally open contacts
Two fully adjustable oxygen concentration alarm set points with programmable relay function Form C contacts
Programmable auto-calibration capability
Remotely operated calibration capability
Self-diagnostics with Form C failure alarm contacts
Profibus-DP and RS232 bi-directional communications
3.5 inch color touchscreen LCD displays reading and key parameters
Integral MEMS-based flow sensor
RFI protected
Power: 24 VDC
CE Mark: Conforms to EN61326:2013 and EN61010-1:2010
Power adapter: 60W power supply (AC power cord ordered separately

Air separation and liquefaction
Pure, gaseous hydrocarbon stream monitoring
Emissions monitoring
Protective atmosphere blanketing of primary liquid feedstocks and flammable liquids
Process monitoring of gaseous monomers - vinyl chloride, propylene, butadiene, isoprene or ethylene
Gas purity certification
Semi conductor manufacturing
