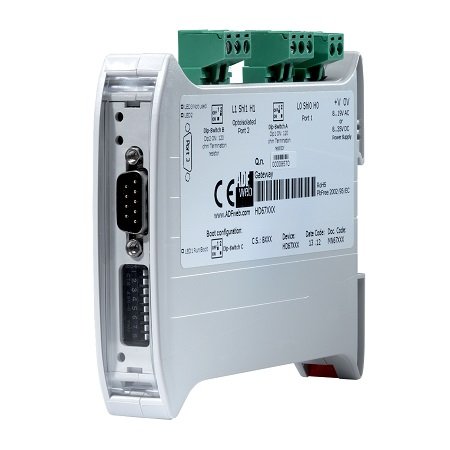

CAN - Repeater - Extender bus line HD67182

Name: CAN - Repeater - Extender bus line HD67182
Brand: Axis Solutions

The ranges includes various products for solving all the needs of a CAN line like extension of the line, increase of nodes number, isolation of CANopen branches, protection from spikes noise and electrostatic charger or simply to change the communication baudrate. The HD67117 and HD67117M devices are repeaters/isolators for CANopen buses.

Talk to Our Experts Download Datasheet

Electrical isolation of CAN branches Extension of nodes number Different baud rate of branches CAN

Allows extension of a line segment (without lowering the Baud Rate) Industrial temperature range: -40°C / 85°C ( -40°F / 185°F )

Electrical isolation of two branches of a CAN Line (ISO 11898-1)
Allows extension of a line segment without lowering the Baud rate
Interconnects two branches of different speeds;
Uses a microprocessor for the organization of data; Independent Protocol
Possible different baud rate setting (into different branches);
Mountable on Rail DIN
Power Supply 12...24 VDC 200mA; 12...18 VAC 50/60Hz; 200mA
Temperature range -40°C to 85°C; EMS EN 61000-6-2.

CAN - Repeater - Extender bus line HD67182

Features

Advantages

Specifications
