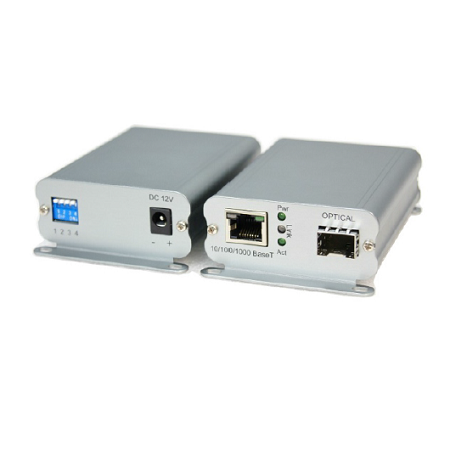

EB-1000C Industrial Media Converter

Talk to Our Experts Download Datasheet

  • Compliant to IEEE802.3ab 1000Base-T
  • Compliant to IEEE802.3z 1000Base-SX/LX
  • Compliant to EFM 1 000Base-LX10/BX10
  • Maximum reach is 500m with Multimode Fiber
  • Distance Up to 10Km with Single Mode Fiber
  • Clear LED Indications
  • Configurable data rate between 10/100/1000M
  • Half duplex and full duplex selectable
  • MTBF > 50000 Hours

  • High-Resolution and Realtime Video Transmission
  • High Quality Audio Transmission
  • Broadband Data Co mmunication
  • Video Broadcasting
  • Industrial Monitoring
  • VoIP Application

  • Ambient Temperature -20 C ~ 75 C
  • Dimensions 86 x 86 x 26 mm (W x D x H)
