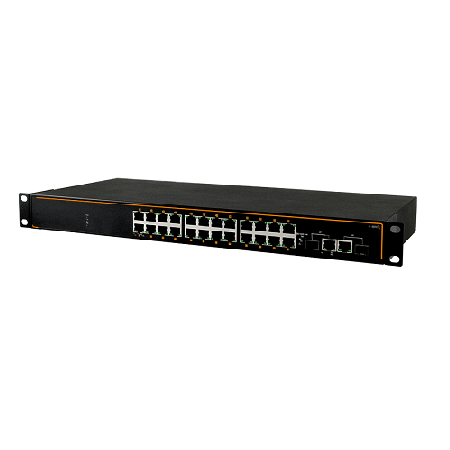

26-Port Industrial Rack-Mount Gigabit Managed Ethernet Switch

26-Port Industrial Rack-Mount Gigabit Managed Ethernet Switch 24×10/100/1000Base-T(X) + 2xGigabit Combo Ports (2 x10/100/1000Base-T(X) or 2*1000Base-X SFP Slots)

Talk to Our Experts Download Datasheet

  • 24-port 10/100/1000Tx Ethernet ports
  • 2x Gigabit Combo Ports (2×10/100/1000Tx RJ45 and 2×100/1000 SFP Slot)
  • System Power Input: 90-264VAC

  • IP40 Rugged Metal Case Design
  • Rack Mounting
  • Operating Temperature Range – STD: -10°C ~ 65°C, OT: -40°C ~ 75°C

  • Wavelength : Depends on SFP modules
  • RS232 Serial Console : 1*RS232 in RJ45 connector with console cable, baud rate 115200bps,8,N,1
  • Optical Cable : Multi-mode cable – 50/125um or 62.5/125um, Single-mode cable – 9/125um or 10/125um
  • Input Voltage: : 100-240VAC power input
  • Overload Current Protection : Yes
  • Reverse Polarity Protection : Yes
  • Power Consumption : Max. 24W full loading
  • Housing : Metal, IP40 protection
  • Dimensions : 440 x 44 x 200 mm (W x H x D)
  • Weight : Unit Weight: 2.8 kg, Shipping Weight: 3.6 kg
  • Mounting : 19″ rack mounting
  • Operating Temperature : STD: -10°C ~ 65°C (14°F ~ 149°F)
  • Storage Temperature : -40°C ~ 75°C (-40°F ~ 167 °F)
  • Operating Humidity : 5 to 95%, (non-condensing)
  • EMI : FCC Part 15 Subpart B Class A, CE EN 55022 Class A
