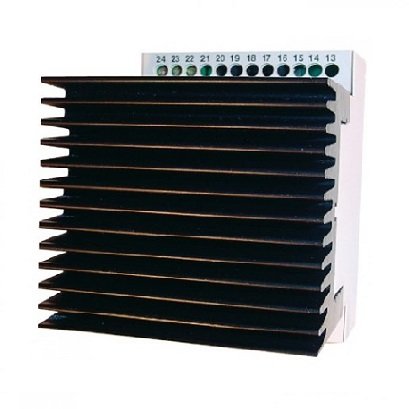

Dual stabilized power supply S200

Dual stabilized power supply with + 15 Vdc 350 mA and - 15 Vdc 75 mA outputs. 115 / 230 Vac mains input. Used industrially for powering instruments that require dual stabilized power supply at ± 15Vdc. The input is protected against line over-voltages by means of a varistor. The insulation between the mains and low voltage circuits is 4500 Vac. The outputs are self-protected against short circuits. The self-extinguishing Noryl case is the width of 4 DIN modules, with heatsink on the upper side, and is designed to fit on 35 mm mounting rail (DIN 46277).

Talk to Our Experts Download Datasheet

  • INPUT: programmable via dip switches for 0 - 20 mA and 4 - 20 mA current (with both active and passive connection) or for 0 - 5 Vdc, 1 - 5 Vdc, 0 - 10 Vdc and 2 - 10 Vdc voltage.
  • INTEGRATION CONSTANT programmable for scale end from 1 pulse every 27 minutes to 20 pulses per second.

  • EXTREMELY SIMPLE CALIBRATION only requiring the use of an ordinary digital tester.
  • Two signaling LEDs on the front panel indicate power on and output pulse.
  • The self-extinguishing Noryl case is the width of 3 DIN modules and is designed to fit on a 35 mm mounting rail (DIN 46277).

  • Power supply : 115 / 230 Vac +/- 10% 50 / 60 Hz
  • Power consumption : 7,5 VA
  • Outputs : + 15 Vdc 350 mA and - 15 Vdc 75 mA
  • Operating temp. : - 10 / + 60 °C

See Related Products

Surge Protection S400NET

Surge Protection S400NET

DC current isolator Z109S

DC current isolator Z109S

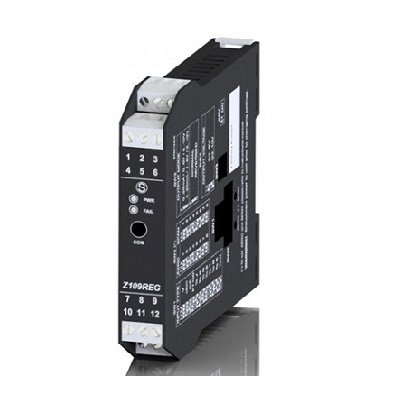

Universal Converter Z109REG
