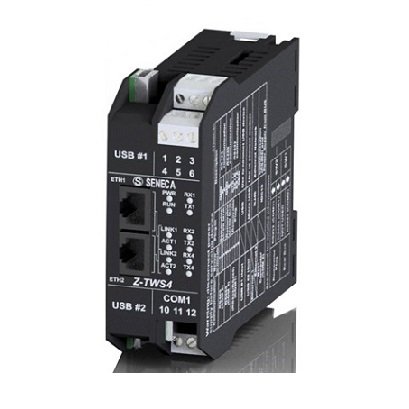

IEC 61131-3 Multifunction Control Unit, Straton / Linux Embedded Z-TWS4

Z-TWS4 is a high performance control unit with 4 I/O built-in channels, 1GB Flash memory, 64GB RAM, nr.1 CAN port, nr.4 seral ports, nr.2 USB ports, nr. 2 Ethernet ports and 1 Micro SD card slot up to 32GB. Suitable for energy application (IEC 60870-5-101, IEC 60870-5-104, IEC 61850) and plant automation (Straton - Soft PLC IEC 61131-3). Z-TWS4 is also a CPU Linux-based for data acquisition and control application. Through to the integration with IDE Straton environment, Z-TWS4 supports specific communication protocols in the energy applications such as IEC 60870, IEC 61850.

Talk to Our Experts Download Datasheet

  • Electrical communication standards: IEC 60870-5-101 and IEC 60870-5-104 Slave, IEC 61850.
  • IEC 61131-3 SoftPLC Straton Integration.
  • 4-CH built-in I/O.
  • RTU / Gateway interface, ModBUS RTU – ModBUS TCP protocol conversion.

  • Virtual network connection and point-to-point tunnelling.
  • Redundant Configuration for plant automations.
  • Configurable as web server and TCP-IP node.
  • SCADA / EMS / Web-based platforms compatibility.

  • Power supply : 11-40 Vdc; 19-28 Vac
  • Power Consumption : Max 6 W Isolation : 1.500 V
  • Operating temperature : -20 to +55°C
  • Protection degree : IP20

See Related Products

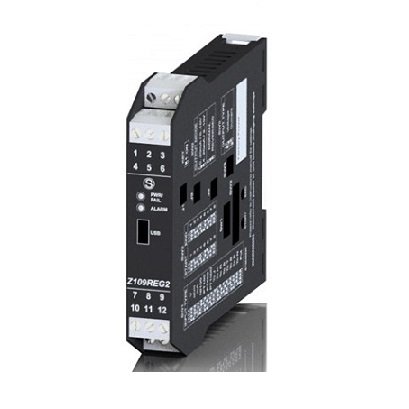

High performance universal converter Z109REG2-1
