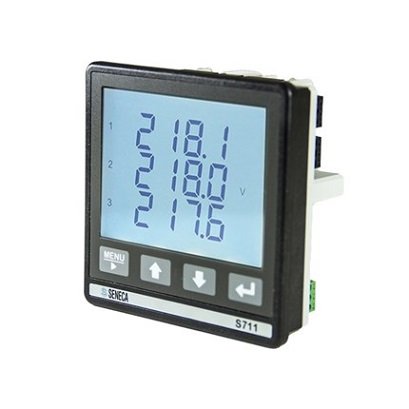

Multifunction Power Meters S711E

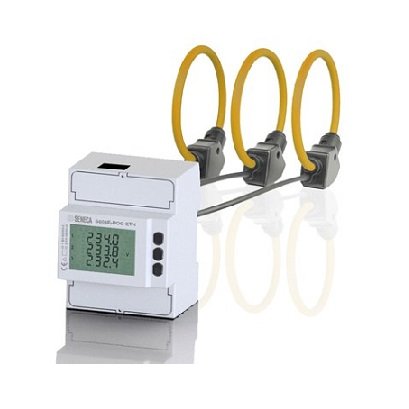

S604 and S711 Series are instruments for the measurement and storage of electrical parameters. They are particularly suitable when a device for analysis and control is required consumption, with an excellent price/performance ratio. Rogowski current transducers versions offer extreme ease of connection and can be used in applications with high currents, linear measurements, retrofitting, energy audits etc. On request, the tools can communicate through the RS485 serial port with ModBUS RTU/ASCII protocol or via Ethernet port with ModBUS TCP-IP protocol. It also is supplied ENERGY POWER PACK software for remote management of the instrument. It’s available also a Web server interface for the management of the instrument from any PC connected to LAN/Internet network.

Talk to Our Experts Download Datasheet

  • Recording of average values of active and reactive powers.
  • Up to 24 parameters selectable from instantaneous variables for recording MIN/MED/MAX values.
  • Up to 8 MB of memory for data logging.

  • Energy monitoring and control systems.
  • Load monitoring of single machines.
  • Control of power peaks.
  • Control panels, generators, motor control, etc.
  • Remote consumption detection and cost calculation.

  • Power supply : 230 Vac / 115 vac (RS485 models)
  • Max consumption : 3,5 VA - 1 W each phase (self-powered models)
  • Display : LCD, backlighted, 43x29 mm, 3 rows, 4 digit+symbols
  • Keyboard : 3 front button, 1 protected button
  • Operating temperature : -25 to +55°C
