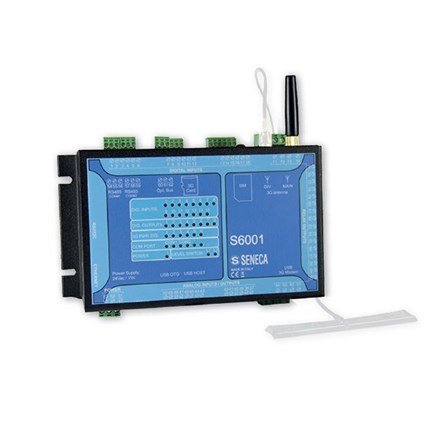

Remote Control Unit with built-in IO and 3G+ modem S6001-RTU

S6001‐RTU all‐in‐one remote control unit that features 31 I/O channels: 15 PNP digital inputs, 2 digital inputs for thresholds monitoring, 4 analog inputs (0..20 mA), 8 SPDT relay outputs 5A ‐ 250 Vac, 1 analog output (0..10 V), 1 analogue output (0..20 mA). S6001‐RTU is also expandable and can be interfaced with 3rd parts systems supporting ModBUS TCPIP and ModBUS RTU, IEC 60870‐101 / 104, IEC 61850 industrial and energy mangement protocols.

Talk to Our Experts Download Datasheet

  • Nr 31 built-in I/O channels.
  • Multi-protocol support: ModBUS TCP-IP, ModBUS RTU, IEC 60870-101/104, IEC 61850
  • SoftLogic IEC 61131 on StratON environment
  • Built-in Modem with dual/quad band UMTS, HDSPA, EDGE, GPRS, GSM technologies

  • Extended connectivity
  • Cut total operating reduction
  • Universal applications

  • Power supply : 10-40 Vdc; 19-28 Vac
  • Enclosure : Aluminum
  • Operating temperature : -20 to +50°C
  • Protection degree : IP20
