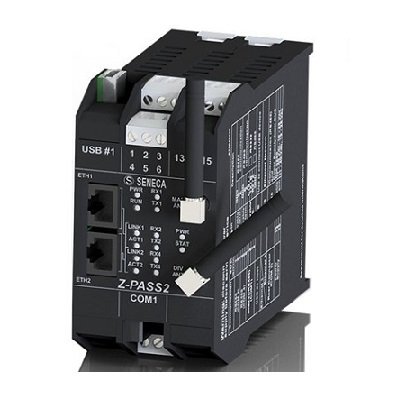

Straton Remote Controller With Built-In I/O Z-PASS2-S

Z-PASS2-S is a high performance multifunction controller including PLC, routing and remote access functions. The device is based on Straton softPLC with web server, VPN and 3G + or 4G LTE modem/route. Equipped with nr.2 Fast Ethernet ports (managed in Switch mode and LAN / WAN), Nr. 1 RS232/RS485 port, Nr.2 RS485 ports and nr.1 USB host 2.0 port, Z-PASS2-S supports ModBUS TCP Server, ModBUS RTU Master/Slave, FTP/SFTP Server, HTTP/HTTPS Server, OpenVPN, SLL and – optionally - Energy Management protocols (IEC 60870-101, IEC 60870-104, IEC 61850).

Talk to Our Experts Download Datasheet

  • Controller based on SoftPLC StratON IEC 61131
  • Nr.2 Fast Ethernet ports 10/100 Tx on RJ45 front connector
  • Nr.1 RS232/RS45 switchable port
  • Nr.2 RS485 ports
  • Nr.1 USB host port
  • Nr.1 worldwide pentaband 3G+ or 4G LTE modem with built-in GPS

  • Nr.6 built-in digital channels.
  • Supported protocols: ModBUS TCP Server, ModBUS RTU Master/Slave, FTP/SFTP Server, HTTP/HTTPS Server, OpenVPN, SLL.
  • Optional Energy management protocols (IEC 60870-101, IEC 60870-104, IEC 61850).

  • Power supply : 19-40 Vdc; 19-28 Vac
  • Power Consumption : Typical 4 W @ 24Vac, Max 6 W
  • Isolation : 1500 Vac
  • Operating temperature : -20 to +65°C
  • Protection degree : IP20
