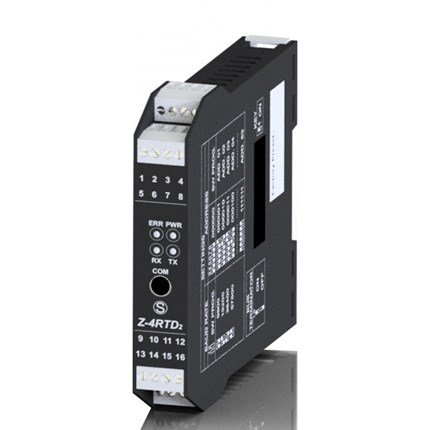

Z-4RTD2

The Z-4RTD-2 module acquires up to 4 RTD signals (through 4 inputs regardless and isolated with each other) it converts them it to a temperature or resistance measure.

Talk to Our Experts Download Datasheet

  • It’s possible to choose if the input is RTD-type: PT100, NI100, PT500, PT1000
  • It’s possible to choose the RTD-measure type: temperature (°C) or resistance(for each input)
  • It’s possible to choose if RTD-wire connection: 2-wire, 3-wire or 4-wire (for each input)
  • Wire measure and wire resistance compensation (if 3-wire connection)

  • Configuration of a filter applied to each input signal
  • It is possible to configure the module (node) address and baud-rate by Dip-Switches
  • It is possible to add/remove the module to/from RS485-bus without disconnecting the  communication or power supply.
  • It is possible to switch automatically RS485 to RS232 or vice versa

  • Resolution : 13bit (if filter=0-1); 14 bit (if filter=2-7)
  • Rejection : 50Hz or 60 Hz
  • Filter : (0-7) IIR and FIR; configurable between: 0 (deactivated), from 1(min) to7(max)
  • Accuracy : Initial: 0.05% of 350

See Related Products

PT100(High-percision) to DC Current Converter K109PT-HPC

PT100(High-percision) to DC Current Converter K109PT-HPC

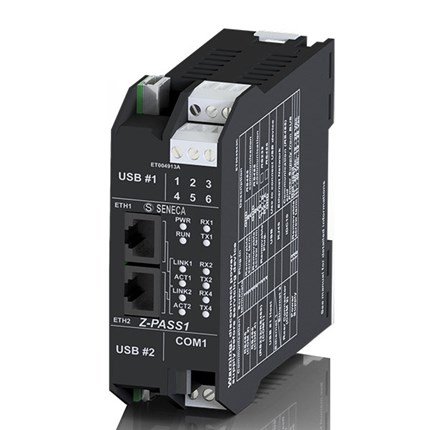

Vpn Industrial Gateway, Serial Device Server With Built-in I/O Z-PASS1
