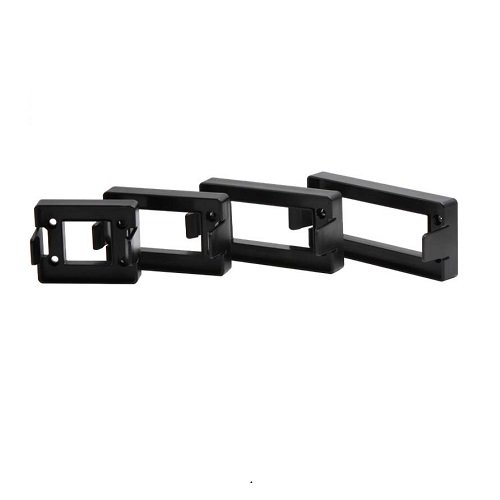

DES FLAP CLICK

The snap cable entry system take to several advantages. Sometimes the available space is limited and is not possible to install multiple frames vertically or horizontally. Thanks to the snap modules the hook supports can be easily mounted and the frame, separately assembled and correctly closed, is quickly inserted into the module.

  • Solution for quick installation of DES CLICK frames
  • Self-extinguishing V0 gasket included in the delivery
  • IP54
  • IP54 certified

  • Material: PC+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
