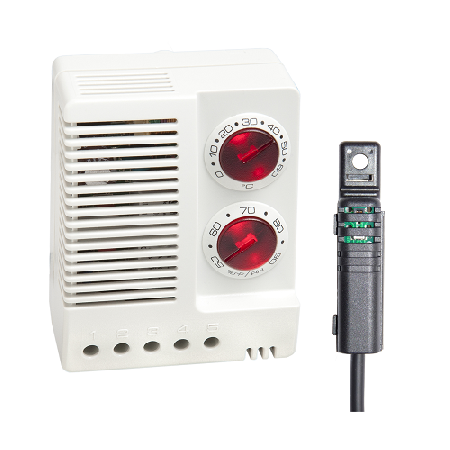

Electronic Hygrotherm With External Sensor ETF 012

The ETF 012 senses the ambient temperature and relative humidity in an enclosure. Depending on which contact combination is chosen, it then turns on or off a connected device if either the temperature is below or the humidity is above the set point. The integrated LED in each adjustment knob i lit when indicating the active function. The external sensor can be positioned freely anywhere in the enclosure for precise measurements.

  • Efficient temperature & humidity control
  • Wide voltage range
  • Operating temperature down to -40 °C
  • High switching capacity
  • With external sensor

  • Efficient temperature & humidity control
  • Wide voltage range
  • Operating temperature down to -40 °C
  • High switching capacity
  • With external sensor

  • Switching difference (Temperature) : 2K (±1 K tolerance) at +25 °C (+77 °F), 50 %RH
  • Reaction time (humidity) : Approx. 5 sec
  • Contact type : Change-over contact (relay)
  • Dimensions : 3.0 x 2.4 x 1.7" (77 x 60 x 43 mm)
  • Connection : 5-pole terminal, clamping torque 0.5 Nm max.: solid/stranded² wire - AWG 14 max. (2.5 mm²)
  • Housing : Plastic, UL 94V-0, light grey
  • Storage temperature : -40 to +140 °F (-40 to +60 °C)
  • Protection type/Protection class : IP20
