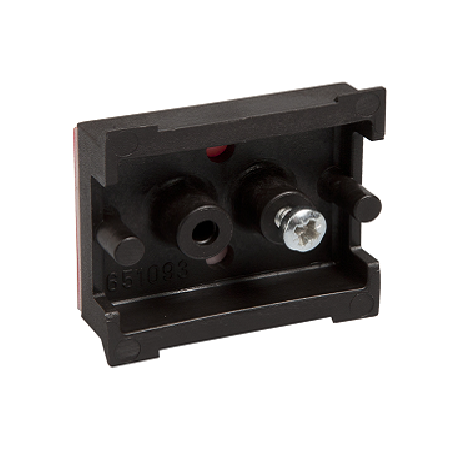

Mounting Aid Stegofix Plus SFP 095

STEGOFIX PLUS allows for a quick and easy direct mounting of smaller devices where DIN Rails may be inconvenient, i.e. in cabinets and enclosures. It is suitable for devices with a DIN clip of 66m/2.6” width max., replacing the conventional 35 mm/1.4” DIN rail. STEGOFIX PLUS is available in three different mounting versions –for screw mounting with 25 mm/98” pitch, with high-performance adhesive tape or rubberized neodymium magnets – offering the right mounting method for almost any application

  • Alternative to 35 mm DIN rail
  • Simple installation
  • For small, DIN rail mountable devices

Optional

  • Screw mounting
  • Self-adhesive tape mounting
  • Magnet mounting

  • Applications : For devices designed for DIN rail mounting on 35 mm DIN rail (according to EN 60715), max. clip width 66 mm (2.6”)
  • Material : Plastic according to UL 94V-0, black
  • Operating temperature : -31 to +167 °F (-35 to +75 °C)
  • Dimensions : 2.8 x 1.6 x 0.6” (71 x 40 x 15 mm)
  • Approvals : EAC
