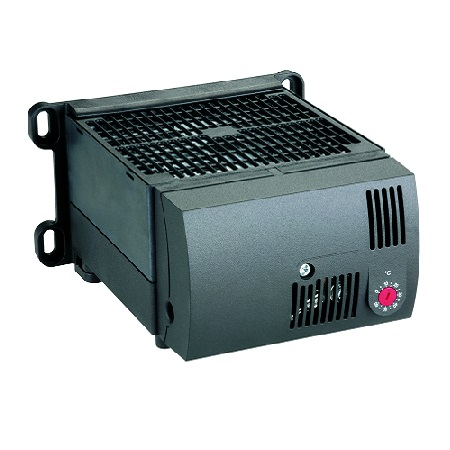

Panel-Mount Fan Heater CR 130

The compact CR 130 high-performance fan heater prevents the formation of condensation and provides an evenly distributed interior air temperature in enclosures. This fan heater is available with an integrated thermostat for temperature control or a pre-set hygrostat for humidity control. The CR 130 was designed as a stationary unit for panel or DIN rail mounting. For foot mounting on the bottom of an enclosure, the CR 030 fan heater is recommended.

Talk to Our Experts Download Datasheet

Compact design
Integrated adjustable thermostat or fixed hygrostat
Double insulated plastic housing
Built-in overheat protection

Compact design
Integrated adjustable thermostat or fixed hygrostat
Double insulated plastic housing
Built-in overheat protection

Heating element : High-performance cartridge heater
Overheat protection : With automatic reset and second-tier one shot fuse
Axial fans, ball bearing : Service life 50,000 h at 77 °F (25 °C)
Housing : Plastic, UL 94V-0, black
Connection : 2-pole terminal AWG 14 max. (2.5 mm²), torque 0.8 Nm max.
Operating/Storage temperature : -49 to +158 °F (-45 to +70 °C)
Protection type/Protection class : II (double insulated) / IP20
Dimensions : 3.9 x 5.7 x 6.6" (100 x 145 x 168 mm)
