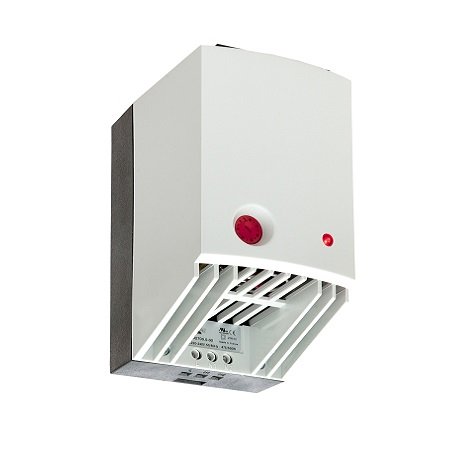

Ptc Fan Heater CR 027

The semiconductor CR 027 fan heater prevents the formation of condensation and ensures an even temperature in enclosures. The integrated thermostat is used to set the desired temperature while the high performance axial fan provides forced air circulation. The CR 027 is also available with a continuously running fan (when powered).

Talk to Our Experts Download Datasheet

Compact fan heater
Heating power adjusts to ambient temperature
Integrated adjustable thermostat
Built-in overheat protection
DIN rail mountable

Compact fan heater
Heating power adjusts to ambient temperature
Integrated adjustable thermostat
Built-in overheat protection
DIN rail mountable

Heating element: PTC resistor - temperature limiting
Overheat protection: built-in temperature limiter
Axial fans, ball bearing: service life 50,000 h at 77 °F (25 °C)
Housing: plastic, UL 94V-0, black
Connection: 2-pole terminal AWG 14 max. (2.5 mm²), torque 0.8 Nm max.
Operating/Storage temperature: -49 to +158 °F (-45 to +70 °C)
Protection type/Protection class: II (double insulated) / IP20
Approvals: UL File No. E204590, VDE, GOST TR
