Oil Tank Monitoring
This solution bridges the gap between physical storage and digital oversight. It automates the collection of critical data points—such as product levels, temperature, and pressure—across multiple tank farms and transmits them to a central, secure cloud environment.

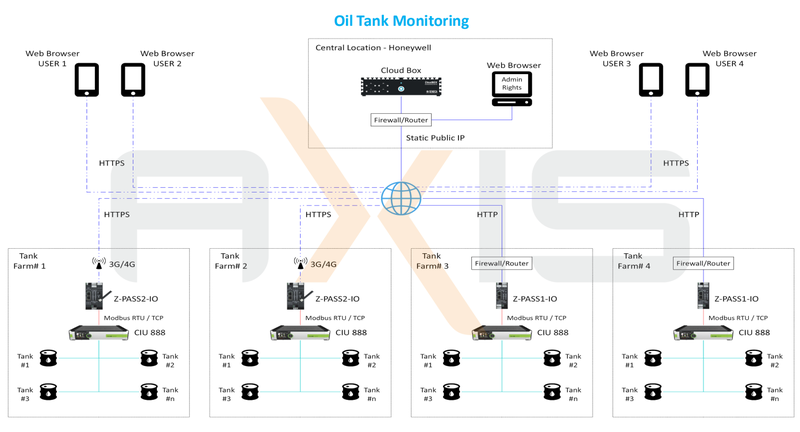

The architecture relies on a "Field-to-Cloud" hierarchy:
- Sensors & Controllers: Each tank site uses a C.U 888 series controller to aggregate data from local sensors via Modbus (RTU/TCP).
- Edge Gateways: The Z-PASS2-O industrial gateway handles the "heavy lifting" of data transmission, using cellular 3G/4G/4G+ or wired Ethernet to push data through the internet.
- Cloud Hub: Data is securely stored in the Honeywell Cloud Box, which serves as the central brain for the entire network.
- Remote Access: Authorized personnel access live dashboards and historical trends from any standard web browser (HTTPS), ensuring total transparency across the organization.
This automation package is designed for large-scale inventory management where assets are geographically dispersed. By centralizing field data into a unified cloud interface, it eliminates the "visibility gap" between remote sites and the main control office.
Unified Tank Monitoring
This solution bridges the gap between physical storage and digital oversight. It automates the collection of critical data points—such as product levels, temperature, and pressure—across multiple tank farms and transmits them to a central, secure cloud environment.
The architecture relies on a "Field-to-Cloud" hierarchy:
- Sensors & Controllers: Each tank site uses a C.U 888 series controller to aggregate data from local sensors via Modbus (RTU/TCP).
- Edge Gateways: The Z-PASS2-O industrial gateway handles the "heavy lifting" of data transmission, using cellular 3G/4G/4G+ or wired Ethernet to push data through the internet.
- Cloud Hub: Data is securely stored in the Honeywell Cloud Box, which serves as the central brain for the entire network.
- Remote Access: Authorized personnel access live dashboards and historical trends from any standard web browser (HTTPS), ensuring total transparency across the organization.
- Control Unit
- Communication Gateway
- Field Protocols
- Connectivity Options
- Security Layer
- Data Centralization
- Monitoring Interface
- C.U 888 series (high-precision data acquisition and local processing).
- Z-PASS2-O or Z-PASS1-O industrial-grade VPN/IoT gateways.
- Native support for Modbus RTU and Modbus TCP for universal sensor compatibility.
- Integrated 3G/4G/4G+ cellular backhaul; supports wired WAN/LAN with static public IP capability.
- Multi-tiered protection including HTTPS encryption, hardware firewalls, and dedicated router isolation.
- Managed via the Honeywell Cloud Box for secure aggregation and long-term data logging.
- Cross-platform Web Browser access with tiered user permissions (Admin vs. Operator).
