Image 1

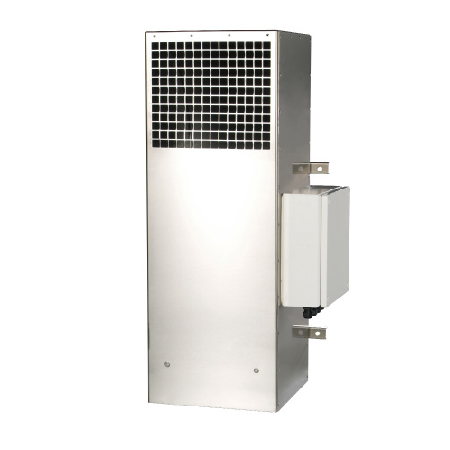

Air Heater Type 810

For a perfect control of our heaters, we recommend our CSN® Standard Control System for Air Heaters 810/4-63

  • control cabinet
  • main switch
  • main fuse
  • control fuse
  • steps switch
  • indication light
Talk to Our Experts Download Datasheet

Materials used for our air heaters:

  • housing: stainless steel AISI 304, CSN® Tubular heating elements exchangeable, material AISI 309 similar, fan,
  • Terminal box: steel powder-coated RAL 7035
  • Temperature controller and limiter

  • Protection mode IP 43 (others on request)
  • The motors, stated in the schedule, are rated for 400 V AC, three-phase, 50 cps.

Options:

  • Against extra costs also other voltages and frequencies can be supplied.

  • Type : 810
  • Power : 4kW
  • Steps kW changeable : 4kW
  • Cross section : 360 x 355mm
