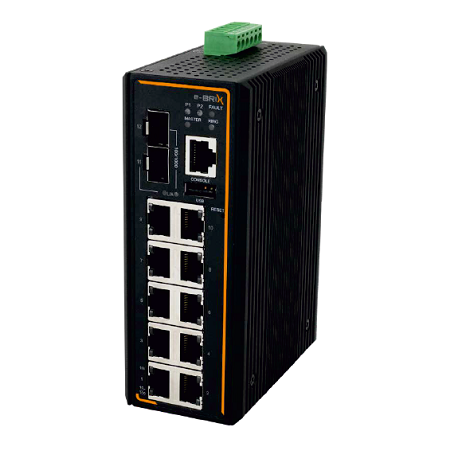

12-Port Industrial Gigabit Managed Ethernet Switch

12-Port Industrial Gigabit Managed Ethernet Switch 10*10/100/1000Tx + 2*100/1000 SFP Slot, 12-48VDC Power Inputs

Wavelength : Depends on SFP modules RS232
Serial Console : 1*RS232 in RJ45 connector with console cable, baud rate 115200bps,8,N,1
Configuration Backup : 1*USB 2.0 for firmware update, configuration backup/restore/boot up and syslog
Input Voltage : 12-48VDC, Redundant Inputs
Overload Current Protection : Yes
Reverse Polarity Protection : Yes
Power Consumption : 15 Watts for System
Housing : Metal, IP30 protection
Dimensions : 54 x 142 x 99 mm (W x H x D)
Weight : Unit Weight: 0.9 kg, Shipping Weight: 1.3 kg
Mounting : DIN-Rail Mounting, Wall Mounting
Operating Temperature : STD: -10°C ~ 65°C (14°F ~ 149°F)
Storage Temperature : -40°C ~ 85°C (-40°F ~ 185 °F)
Operating Humidity : 5 to 95%, (non-condensing)
EMI : FCC Part 15 Subpart B Class A, CE EN 55022 Class A

Features
