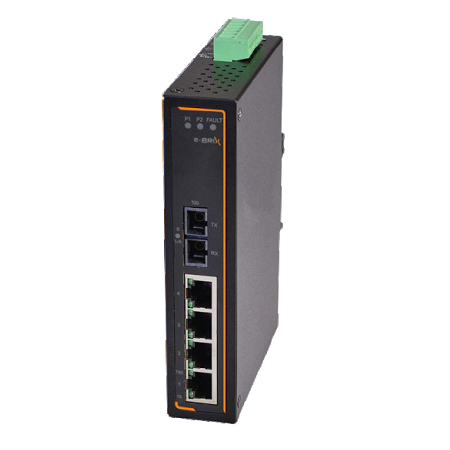

5-Port Industrial Ethernet Switch

  • 5-Port Industrial Ethernet Switch
  • -4*10/100Tx + 1*100Fx, 12-48VDC Power Input
Talk to Our Experts Download Datasheet

  • 4-port 10/100Tx Fast Ethernet
  • 1-port 100Fx – SC/S T connector (Multi/Single Mode)
  • Redundant Power Input Design, 12-48VDC

  • Built-in Relay Output Warning for Power Failure
  • IP30 Rugged Metal Case Design
  • DIN-Rail Mounting, Wall Mounting
  • Operating Temperature Range – STD: -10°C ~ 65°C

  • RJ45 Ports: 5xRJ-45 10/100/1000BaseT(X) auto negotiation, Auto MDI/MDI-X function, Full/Half duplex
  • Fiber Ports: 1*100Fx SC/ST type connector Multi-mode (2Km) – 50/125um or 62.5/125um, Single-mode (30Km) – 9/125um or 10/125um
  • Input Voltage: 12VDC-56VDC or 18VAC-36 VAC
  • Overload Current Protection: Yes
  • Reverse Polarity Protection: Yes
  • Power Consumption: 5 Watts
  • Housing: Metal, IP30 protection
  • Dimensions: 30 x 142 x 99 mm (W x H x D)
  • Weight: Unit Weight: 0.5kg, Shipping Weight: 0.7kg
  • Mounting: DIN-Rail Mounting, Wall Mounting
  • Operating Temperature: STD: -10°C ~ 65°C (14°F ~ 149°F)
  • Storage Temperature: -40°C ~ 85°C (-40°F ~ 185 °F)
  • Operating Humidity: 5 to 95%, (non-condensing)
  • EMI: FCC Part 15 Subpart B Class A, CE EN 55022 Class A EMC / EMS: IEC61000-4-2 (ESD), IEC610 00-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC610 00-4-8 (Magnetic Field)
  • Free Fall: IEC600 68-2-32 Shock: EN 60068-2-27
  • Vibration: EN 60068-2-6 Green: RoHS Compliant
