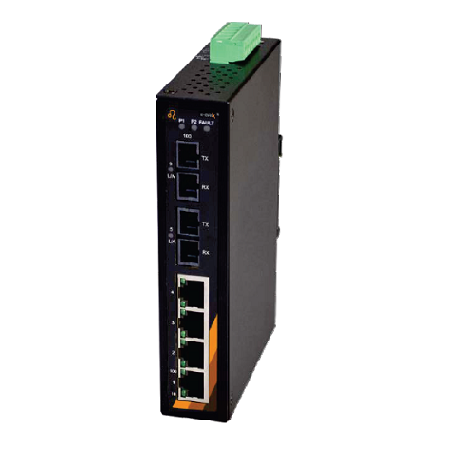

6-Port Industrial Unmanaged Ethernet Switch Single / Multi Mode

6-Port Industrial Unmanaged Ethernet Switch 4×10/100Tx + 2x100Fx, 12-48VDC Power Input

6-Port Industrial Ethernet Switch 2-port 100Fx – SC connector (Single / Multi Mode) Redundant Power Input Design.
12-48VDC Built-in Relay Output Warning for Power Failure IP30 Rugged Metal Case Design DIN-Rail Mounting.
Wall Mounting Operating Temperature Range – STD: -10°C ~ 65°C

RJ45 Ports: 4×10/100BaseT(X), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Ports: 2x100Fx SC type connector Multi-mode (2 Km)/ Single mode (30 Km.) – 50/125um or 62.5/125um
Input Voltage: 12-48VDC, Redundant Input
Overload Current Protection: Yes
Reverse Polarity Protection: Yes
Power Consumption: 6Watts
Housing: Metal, IP30 protection
Dimensions: 30 x 142 x 99 mm (W x H x D)
Weight: Unit Weight: 0.5kg, Shipping Weight: 0.7kg
Mounting: DIN-Rail Mounting, Wall Mounting
Operating Temperature: STD: -10°C ~ 65°C (14°F ~ 149°F)
Storage Temperature: -40°C ~ 85°C (-40°F ~ 185 °F)
Operating Humidity: 5 to 95%, (non-condensing)
EMI: FCC Part 15 Subpart B Class A, CE EN 55022 Class A EMC / EMS: IEC61000-4-2 (ESD), IEC610 00-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC610 00-4-8 (Magnetic Field)
Free Fall: IEC600 68-2-32 Shock: EN 60068-2-27
Vibration: EN 60068-2-6
Green: RoHS Compliant
