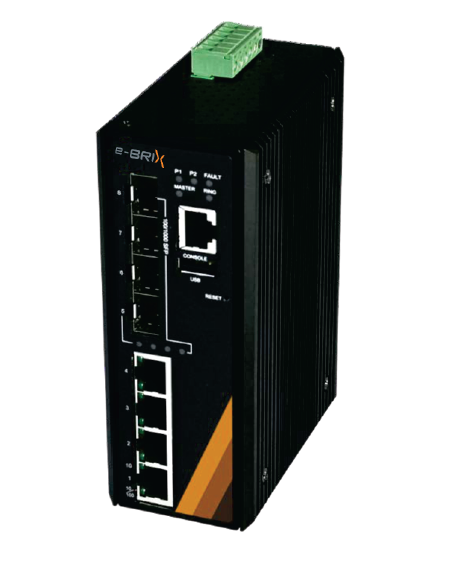

8-Port Industrial Gigabit Managed Ethernet Switch

8-Port Industrial Gigabit Managed Ethernet Switch 4*10/100/1000Base-T(X) + 4*100/1000Base-(F)X SFP Slots

Talk to Our Experts Download Datasheet

  • 4-port 10/100/1000Base-T(X) Gigabit Ethernet
  • 4-port dual rate 100/1000Base-(F)X SFP slots
  • Multiusers account for security
  • Configuration: http, https, CLI Command, Telnet, SNMP, SSH
  • Network redundancy support: G.8032 ERPS v2/STP/RSTP/MSTP
  • Operating temperature range – STD: -10°C ~ 65°C

  • Supports IP route for routing function
  • Supports RADIUS, TACACS+ authentication protocol
  • Supports QoS, LACP bandwidth control
  • Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security
  • Redundant power inputs design

  • Rs232 Serial Console : 1*RS232 in RJ45 connector with console cable, baud rate 115,200bps,8,N,1
  • Optical Cable : Multi-mode cable – 50/125um or 62.5/125um, Single-mode cable – 9/125um or 10/125um
  • Input Voltage : Dual 12-48VDC redundant power inputs
  • Overload Current Protection : Yes
  • Reverse Polarity Protection : Yes
  • Power Consumption : Max. 15W full loading
  • Housing : Metal, IP30 protection
  • Dimensions : 54 x 142 x 99 mm (W x H x D)
  • Weight : Unit Weight: 0.84kg, Shipping Weight: 1.2 kg
  • Mounting : DIN-Rail Mounting, Wall Mounting
  • Operating Temperature : STD: -10°C ~ 65°C (14°F ~ 149°F)
  • Storage Temperature : -40°C ~ 85°C (-40°F ~ 185 °F)
  • Operating Humidity : 5 to 95%, (non-condensing)
  • EMI : FCC Part 15 Subpart B Class A, CE EN 55022 Class A
