Image 1

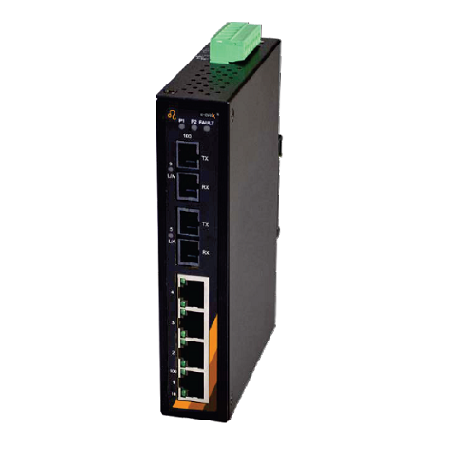

6-Port Industrial Unmanaged Ethernet Switch

6-Port Industrial Unmanaged Ethernet Switch 4×10/100Tx + 2x100Fx, 12-48VDC Power Input

Talk to Our Experts Download Datasheet

  • 6-Port Industrial Ethernet Switch
  • 2-port 100Fx – SC connector (Multi Mode)
  • Redundant Power Input Design, 12-48VDC
  • Built-in Relay Output Warning for Power Failure
  • IP30 Rugged Metal Case Design
  • DIN-Rail Mounting, Wall Mounting
  • Operating Temperature Range – STD: -10°C ~ 65°C

  • 6-Port Industrial Ethernet Switch
  • 2-port 100Fx – SC connector (Multi Mode)
  • Redundant Power Input Design, 12-48VDC
  • Built-in Relay Output Warning for Power Failure
  • IP30 Rugged Metal Case Design
  • DIN-Rail Mounting, Wall Mounting
  • Operating Temperature Range – STD: -10°C ~ 65°C

  • Input Voltage : 12-48VDC, Redundant Input
  • Overload Current Protection : Yes
  • Reverse Polarity Protection : Yes
  • Power Consumption : 6Watts
  • Housing : Metal, IP30 protection
  • Dimensions : 30 x 142 x 99 mm (W x H x D)
  • Weight : Unit Weight: 0.5kg, Shipping Weight: 0.7kg
  • Mounting : DIN-Rail Mounting, Wall Mounting
  • Operating Temperature : STD: -10°C ~ 65°C (14°F ~ 149°F)
  • Storage Temperature : -40°C ~ 85°C (-40°F ~ 185 °F)
  • Operating Humidity : 5 to 95%, (non-condensing)
