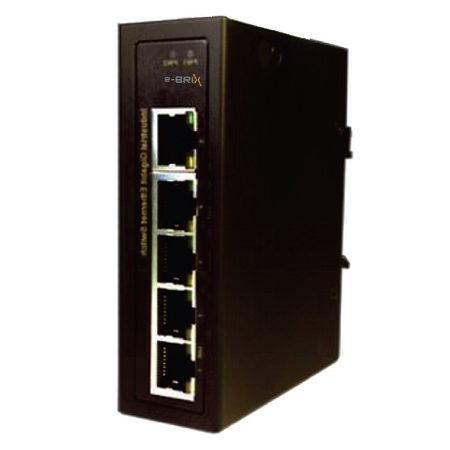

5-Port Industrial Gigabit Ethernet Switch

5*10/100/1000Tx, 12-56VDC Power Input or 18VAC – 36VAC

RJ45 Ports: 5xRJ-45 10/100/1000BaseT(X) auto negotiation, Auto MDI/MDI-X function, Full/Half duplex
Input Voltage: 12VDC-56VDC or 18VAC-36 VAC
Overload Current Protection: Yes
Reverse Polarity Protection: Yes
Power Consumption: 2.76W@48 VDC full load
Housing: Rugged Aluminum, IP 30 protection
Dimensions: 103.5 x 32 x 81.5 mm (L x W x D)
Weight: Unit Weight: 0.5kg, Shipping Weight: 0.7kg
Mounting: DIN-Rail Mounting, Wall Mounting
Operating Temperature: -40°C to 75°C
Storage Temperature: -40°C ~ 85°C (-40°F ~ 185 °F)
Operating Humidity: 5 to 95%, (non-condensing)
EMI: FCC Part 15 Subpart B Class A EMC / EMS: CE, FCC, VCCI
Free Fall: IEC600 68-2-32 Shock: EN 60068-2-27
Vibration: EN 60068-2-6
Green: RoHS Compliant
