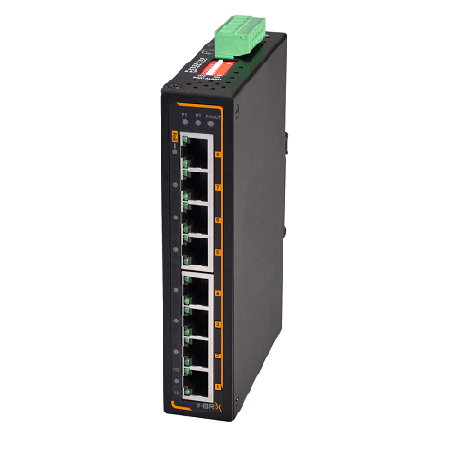

8-Port Industrial PoE+ Ethernet Switch

8-Port Industrial PoE+ Ethernet Switch 8*10/100Tx with PoE Injector (30W/Port), 48-55VDC Power Input

Talk to Our Experts Download Datasheet

  • 8-port 10/100Tx with IEEE 802.3at Compliance
  • Redundant Power Inputs Design, 48-55VDC
  • Built-in Relay Output Warning for Power Failure and Port Link Down
  • IP30 Rugged Metal Case Design
  • DIN-Rail Mounting, Wall Mounting
  • Operating Temperature Range – STD: -10°C ~ 65°C

  • 8-port 10/100Tx with IEEE 802.3at Compliance
  • Redundant Power Inputs Design, 48-55VDC
  • Built-in Relay Output Warning for Power Failure and Port Link Down
  • IP30 Rugged Metal Case Design
  • DIN-Rail Mounting, Wall Mounting
  • Operating Temperature Range – STD: -10°C ~ 65°C

  • Overload Current Protection : Yes
  • Reverse Polarity Protection : Yes
  • Power Consumption : 8.5Watts for System
  • Housing : Metal, IP30 protection
  • Dimensions : 30 x 142 x 99 mm (W x H x D)
  • Weight : Unit Weight: 0.5kg, Shipping Weight: 0.7kg
  • Mounting : DIN-Rail Mounting, Wall Mounting
  • Operating Temperature : STD: -10°C ~ 65°C (14°F ~ 149°F)
  • Storage Temperature : -40°C ~ 85°C (-40°F ~ 185 °F)
  • Operating Humidity : 5 to 95%, (non-condensing)
  • EMI : FCC Part 15 Subpart B Class A, CE EN 55022 Class A
