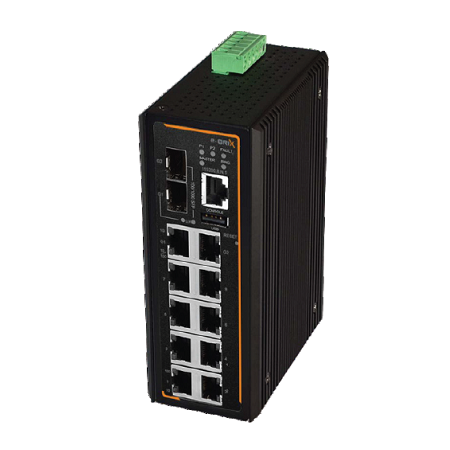

10-Port Industrial Managed Ethernet Switch

10-Port Industrial Managed Ethernet Switch

  • 8*10/100Tx + 2* Gigabit Combo Ports
  • (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slot), 12-48VDC Power Inputs
Talk to Our Experts Download Datasheet

  • 8-port 10/100Tx Fast Ethernet
  • 2* Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slot)
  • Configuration: Web GUI, Serial Console, CLI Command
  • Network Redundancy support: G.8032ERPS,RSTP,MSTP
  • System Warning setting for automatic warning through e-mail
  • Redundant Power Inputs Design, 12-48VDC
  • IP30 Rugged Metal Case Design
  • Operating Temperature Range – STD: -10°C ~ 65°C,EOT: -40°C ~ 75°C

  • Supports IGMP v1/v2, up to 256 groups
  • Supports Storm Protection for Broadcast, Multicast, and Unicast frames
  • Supports IEEE802.1p QoS and CoS/ToS
  • Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3

  • Wavelength : Depends on SFP modules Rs232
  • Serial Console : 1*RS232 in RJ45 connector with console cable, baud rate 115200bps,8,N,1
  • Configuration Backup : 1*USB 2.0 for firmware update, configuration backup/restore/boot up and syslog
  • Input Voltage : 12VDC-56VDC or 18VAC-36 VAC
  • Overload Current Protection : Yes
  • Reverse Polarity Protection : Yes
  • Power Consumption : 15 Watts for System
  • Housing : Metal, IP30 protection
  • Dimensions : 54 x 142 x 99 mm (W x H x D)
  • Weight : Unit Weight: 0.84kg, Shipping Weight: 1.2kg
  • Mounting : DIN-Rail Mounting, Wall Mounting
  • Operating Temperature : STD: -10°C ~ 65°C (14°F ~ 149°F)
  • Storage Temperature : -40°C ~ 85°C (-40°F ~ 185 °F)
  • Operating Humidity : 5 to 95%, (non-condensing)
  • EMI : FCC Part 15 Subpart B Class A, CE EN 55022 Class A
