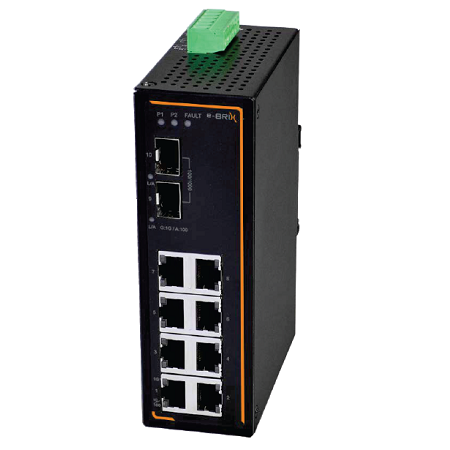

10-Port Industrial Gigabit Ethernet Switch

10-Port Industrial Gigabit Ethernet Switch 8*10/100/1000Tx + 2*100/1000 SFP Slot, 12-48VDC Power Input

Talk to Our Experts Download Datasheet

  • 8-port 10/100/1000Tx Gigabit Ethernet
  • 2-port 100/1000 SFP Slot
  • Redundant Power Input Design, 12-48VDC
  • Built-in Relay Output Warning for Power Failure
  • IP30 Rugged Metal Case Design
  • DIN-Rail Mounting, Wall Mounting
  • Operating Temperature Range – STD: -10°C ~ 65°C, EOT: -40°C ~ 75°C

  • 8-port 10/100/1000Tx Gigabit Ethernet
  • 2-port 100/1000 SFP Slot
  • Redundant Power Input Design, 12-48VDC
  • Built-in Relay Output Warning for Power Failure
  • IP30 Rugged Metal Case Design
  • DIN-Rail Mounting, Wall Mounting
  • Operating Temperature Range – STD: -10°C ~ 65°C, EOT: -40°C ~ 75°C

  • Fiber Ports : 2*100/1000 SFP Slot
  • Input Voltage : 12-48VDC, Redundant Input
  • Overload Current Protection : Yes
  • Reverse Polarity Protection : Yes
  • Power Consumption : 5 Watts
  • Housing : Metal, IP30 protection
  • Dimensions : 46 x 142 x 99 mm (W x H x D)
  • Weight : Unit Weight: 1.36kg, Shipping Weight: 1.56kg
  • Mounting : DIN-Rail Mounting, Wall Mounting
  • Operating Temperature : STD: -10°C ~ 65°C (14°F ~ 149°F)
  • Storage Temperature : -40°C ~ 85°C (-40°F ~ 185 °F)
  • Operating Humidity : 5 to 95%, (non-condensing)
  • EMI : FCC Part 15 Subpart B Class A, CE EN 55022 Class A
