Double Alarm Threshold With Universal Input And Relay Output Z113-1

Z113-1 is an alarm threshold with two relay output SPST from 3A 250V with a common contact. The module allows to select the input type via DIP-switch: voltage, current, potentiometer, thermocouple (TC), thermoresistance (RTD). Input, output, input filter, rejection and burn-out can be configured through Software (via front USB port),

Talk to Our Experts Download Datasheet

  • Power Supply 10..40 Vdc, 19..28 Vac.
  • Transducer power supply.
  • Isolation 1.500 Vac between Power supply and input , 3.000 Vac in output.
  • Nr 1 configurable input as mA, V, Ohm, RTD, TC.
  • Nr 2 thresholds relay SPST, 3 A, 250 Vac.
  • Configuration through software and Micro USB port (EASY SETUP).

  • Z113-1 is an alarm threshold with two relay output SPST from 3A 250V with a common contact. The module allows to select the input type via DIP-switch: voltage, current, potentiometer, thermocouple (TC), thermoresistance (RTD).
  • Input, output, input filter, rejection and burn-out can be configured through Software (via front USB port).

  • Power supply : 10..40 Vdc; 19..28 Vac
  • Power consumption : 2,5 W
  • Removable terminals : Yes, current input (mx 17 V – 20 mA)
  • Isolation : 1.500 V between input and Power supply (3.000 V output)
  • Protection degree : IP20

See Related Products

Professional Handheld Temperature And Humidity Probes For Android Devices MY-TC-250-1.5

Professional Handheld Temperature And Humidity Probes For Android Devices MY-TC-250-1.5

PT100(High-percision) to DC Current Converter K109PT-HPC

PT100(High-percision) to DC Current Converter K109PT-HPC

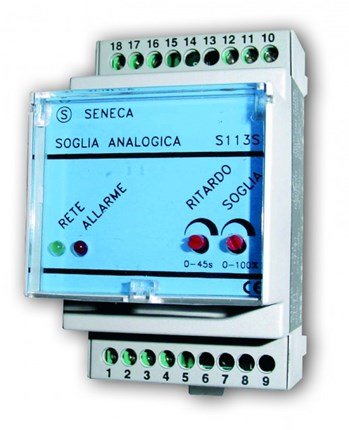

Single alarm threshold S113S
