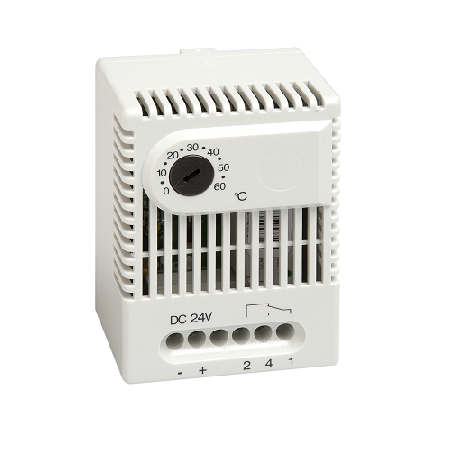

Electronic Thermostat ET011

The ET 011 is an electronic thermostat for regulating high-performance DC 24 V equipment. Heating or cooling equipment, as well as signal devices, can be switched via the SPDT (change-over) contact. A relatively small hysteresis sets the ET 011 Thermostat apart from less accurate mechanical thermostats.

Talk to Our Experts Download Datasheet

  • 16 Amp DC switching capacity
  • Low hysteresis
  • Wide adjustment range
  • DIN rail mountable

  • 16 Amp DC switching capacity
  • Low hysteresis
  • Wide adjustment range
  • DIN rail mountable

  • Switching difference (Temperature) : Approx. 5.4 °F ± 1.8 °F tolerance (3 K ± 1 K)
  • Sensor element : PTC
  • Contact type : SPDT / change-over contact
  • Dimensions : 2.54 x 1.65 x 1.5" (64.5 x 42 x 38 mm)
  • Connection : 5-pole terminal, clamping torque 0.5 Nm max.: solid wire - AWG 14 max. (2.5 mm²) stranded wire1 - AWG 16 max. (1.5 mm²)
  • Housing : Plastic, UL 94V-0, light grey
  • Storage temperature : +14 to +140 °F (-10 to +60 °C) / -49 to +176 °F (-45 to +80 °C)
  • Protection type/Protection class : IP20
