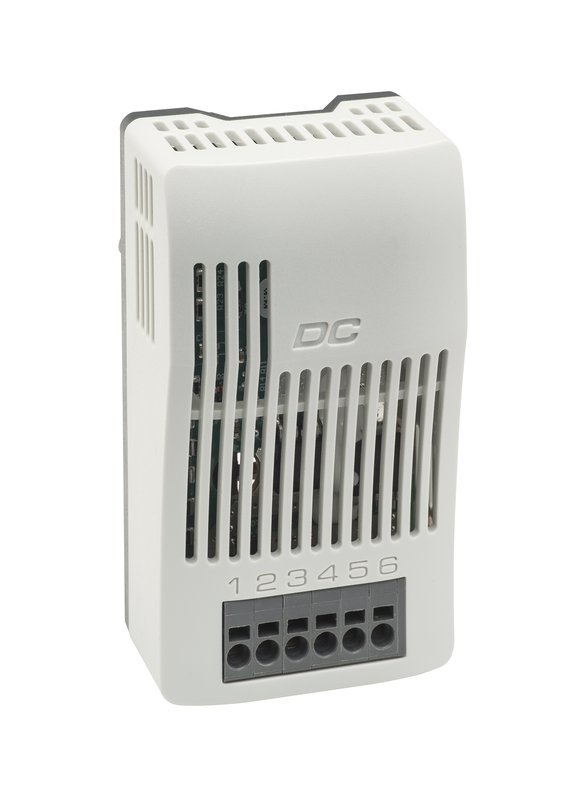

Switch Module (RELAY) DCM 010

The DCM 010 is used to control DC powered devices with high capacities in control and switch cabinets. It is controlled via an external potential-free contact (thermostat or hygrostat), which is connected between terminal 3 and 4. It must be ensured that the external contact is suitable to switch the required signal current without any problems.

Talk to Our Experts Download Datasheet

  • High DC switching capacity
  • Variety of applications
  • Wide DC voltage range
  • Simple connection

  • High DC switching capacity
  • Variety of applications
  • Wide DC voltage range
  • Simple connection

  • Switching difference (humidity) : 4 % RH (±1 % tolerance) at +77 °F (+25 °C), 50 % RH
  • Control contact – signal current : 3 mA at DC 20 V / 4.5 mA at DC 24 V, 14 mA at DC 48 V / 17 mA at DC 56 V
  • Contact type : NO - normally open (MOSFET
  • Dimensions : 3.7 x 2.1 x 1.7" (93 x 53 x 44 mm)
  • Connection: : 6-pole terminal: stranded wire1 AWG 16 (1.5 mm²); max. AWG 12 (2.5 mm²)

Housing: : Plastic, UL 94V-0, grey (bicolor)

Storage temperature: : -40 to +176 °F (-40 to +80 °C)

Protection type/Protection class: : IP20

Approvals : UL File No. E164102, VDE, EAC

See Related Products

Electronic Hygrostat DCF 010

Electronic Hygrostat DCF 010

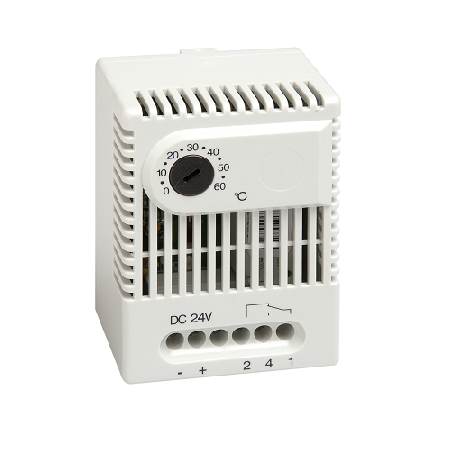

Electronic Thermostat ETR 011

Electronic Thermostat ETR 011

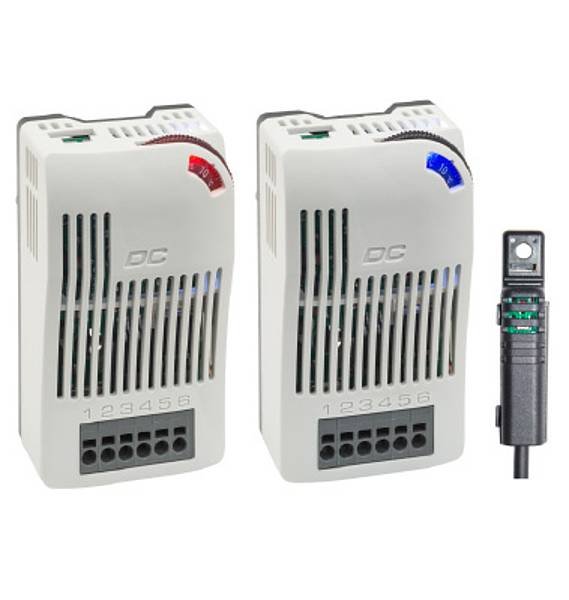

ElectronicThermostat DCT 010

ElectronicThermostat DCT 010

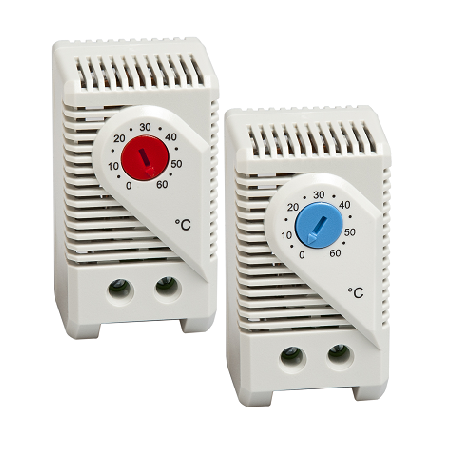

Small Thermostat KTO 011 / KTS 011
