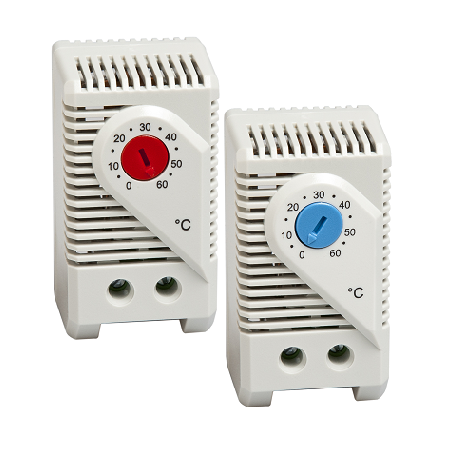

Small Thermostat KTO 011 / KTS 011

Thermostat (NC): Thermostat opens on temperature rise – for regulating heaters or for switching signal devices. Comes with a red temperature dial. Thermostat (NO): Thermostat closes on temperature rise – for regulating filter fans and heat exchangers or for switching signal devices. Comes with a blue temperature dial.

Talk to Our Experts Download Datasheet

  • Compact design
  • Wide adjustment range
  • Color-coded temperature dials
  • DIN rail mountable

  • Compact design
  • Wide adjustment range
  • Color-coded temperature dials
  • DIN rail mountable

  • ensor element : Thermostatic bimetal
  • Contact type : Snap-action contact
  • Dimensions : 2.4 x 1.3 x 1.7” (60 x 33 x 43 mm)
  • Connection : 2-pole terminal, clamping torque 0.5 Nm max.: solid wire - AWG 14 max. (2.5 mm²) stranded wire1 - AWG 16 max. (1.5 mm²)
  • Housing : Plastic, UL 94V-0, light grey
  • Storage temperature : -49 to +176 °F (-45 to +80 °C)
  • Protection class : IP20
