Temperproof Dual Thermostat FTD011

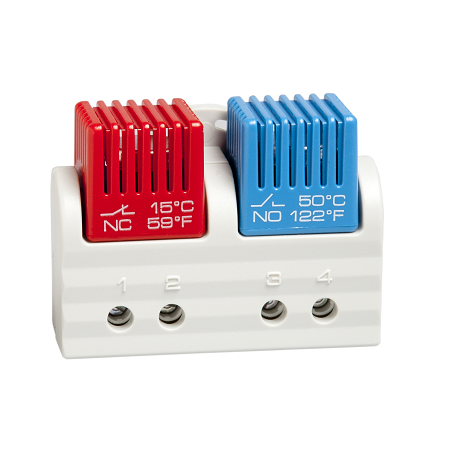

Two thermostats in one housing: Tamperproof (Pre-set) Thermostat NC (normally closed): Thermostat opens on temperature rise (red module housing) – for regulating heaters or for switching signal devices when the temperature has fallen below the minimum value. Tamperproof (Pre-set) Thermostat NO (normally open): Thermostat closes on temperature rise (blue module housing) – for regulating filter fans, heat exchangers, cooling devices, or for switching signal devices when temperature limit has been exceeded.

Talk to Our Experts Download Datasheet

  • NC / NO or NO / NO in one unit
  • Fixed set points
  • Color coded modules
  • DIN rail mountable

  • NC / NO or NO / NO in one unit
  • Fixed set points
  • Color coded modules
  • DIN rail mountable

  • Sensor element : Thermostatic bimetal
  • Contact type : Snap-action contact
  • Dimensions : 1.85 x 2.5 x 1.3” (47 x 63 x 33 mm)
  • Connection : 4-pole terminal, clamping torque 0.8 Nm max.: solid wire - AWG 14 max. (2.5 mm²) stranded wire1 - AWG 16 max. (1.5 mm²)
  • Housing : Plastic, UL 94V-0, light grey
  • Storage temperature : -40 to +176 °F (-40 to +80 °C) / -49 to +176 °F (-45 to +80 °C)
  • Protection class : IP20
