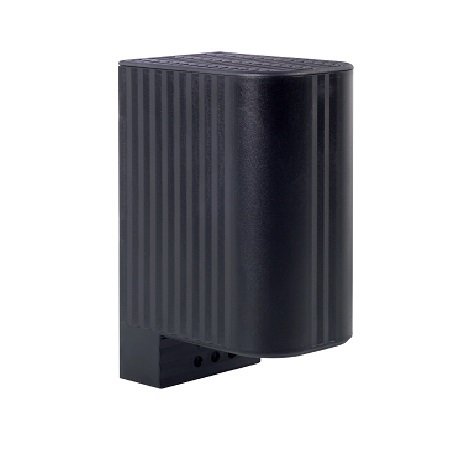

Touch-Safe Ptc Fan Heater CS 060

The CSF 060 is a touch-safe heater for use in enclosures. The design of the heater utilizes natural convection which results in a circulating current of warm air. The surface temperatures on the accessible side surfaces of the housing are minimized as a result of the heater design. This model with a plug-in thermostat does not require additional wiring. The CSF 060 is also available in a version without a thermostat (CS 060).

  • Low surface temperature
  • Integrated thermostat
  • Compact size
  • Wide voltage range
  • Double insulated protection
  • DIN rail mountable

  • Low surface temperature
  • Integrated thermostat
  • Compact size
  • Wide voltage range
  • Double insulated protection
  • DIN rail mountable

  • Heating element : PTC resistor – temperature limiting
  • Housing : Plastic, UL 94V-0, black
  • Connection : 4-pole terminal AWG 14 max (2.5 mm²), torque 0.8 Nm max.
  • Operating/Storage temperature : -40 to +158 °F (-40 to +70 °C) / -49 to +158 °F (-45 to +70 °C)
  • Protection type/Protection class : II (double insulated) / IP20
