- Non-contact type
- Display : LCD
- Password Protection
- Easy to Install & Configure
- Software calibration
- Battery Operated
- Narrow Beam Technology
- Compact size & Easy Maintenance
- Process down time minimized
- Automatic Temperature Compensation
- Measures liquid height, distance to liquid, volume or flow in open channels

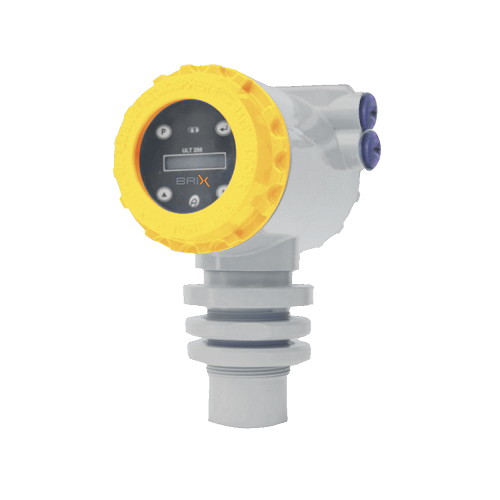

Brix series ULT-200B is a Battery Operated Ultrasonic Level Transmitters specially designed for non-contact type level measurement. Ultrasonic level measurement is based on the transit time technology which calculates the time required by ultrasonic pulses to travel from sensor & surface of liquid & back to sensor. Ultrasonic level transmitters are the best for applications such as slurries, corrosive liquids & waste water without obstacle throughout the beam. The transmitter provides local indication through LCD. The measuring range is available up to 12 mtrs.
- Measurement Principle : Ultrasonic – Time of Flight
- Measuring Range : up to 12 mtrs.
- Power Supply : Battery Operated
- Power Consumption : < 500 mW
- Temperature Coefficient : +/- 0.01% per °C
- Certification : CE
|
