- Piezo Resistive Sensor
- Measuring Range +/- 0.1 to 25 bar
- Indication Through LCD
- Display Auto Shut-Off Facility
- Battery Operated, Solar Powered
- Reliable and Cost Effective
- Unit Conversion Facility
- Zero Tare Facility

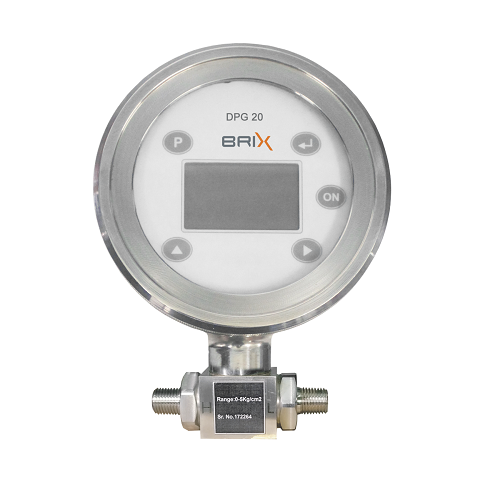

Brix series DPG-20 is Digital Differential Pressure Gauges for fast, easy & trouble free operation. These can be cost effective & ideal for monitoring the pressure. Display shut-off facility is provided so that display can be made ‘ON’ only if required through push button. Thus it saves the battery power & results in long lasting battery operation.
- Sensor Type : Piezo Resistive
- Pressure Range ±0.1 to 25 Bar
- Power Supply : Battery Operated, Solar Powered
- Display : LCD Display
- Response Time : < 200 mSec
- Process Temperature : -20 to 120°C max
- Sensor MOC : SS316 / Hastelloy C
|
